Roll Shutter Door Roll Forming Machine



Description of roll shutter door roll forming machine:

1. Appearance and delicate: is made of high qualified steel plate (aluminum) rolling forming, not filled with middle carbon fluorinated compounds of polyurethane foaming materials, heat insulation, sound

insulation, heat preservation.

2. Use fast: in the process of start, very swift and no noise, if use motor drive, power changed hands move way can be met.

3. Durable: using high quality materials, sophisticated production technology and production technology, meet slight collision after can sprung automatically deformation.

4. Save a space: the closed beta guide drive, promoting a door with other than to save the building, the internal space, installation is more convenient.



Components:

Un-coiler;

Hydraulic System;

Computer control cabinet;

Counter;

Simple Stack



Specifications:

Control System: PLC Control Touch Screen

Main Frame: 16mm steel welding

Main Power: 3 KW

Sizes : 2200*700*900mm

Roll Station: 12stands

Shaft Diameter: 40mm

Feeding Thickness: 0.6-1.2mm

Roller : 45# steel

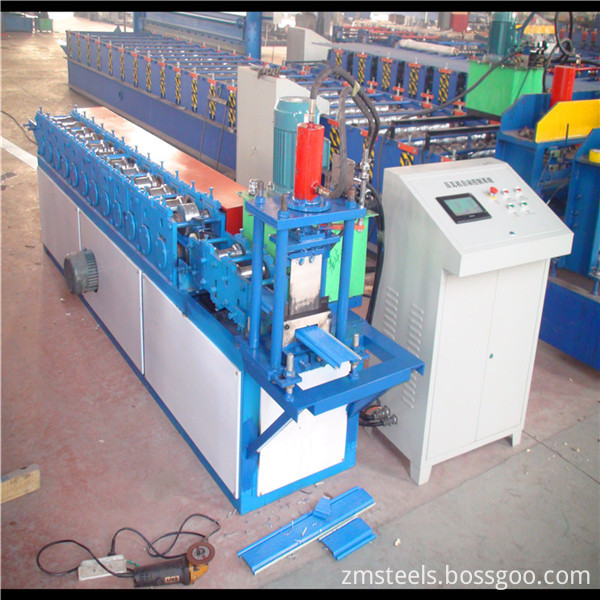

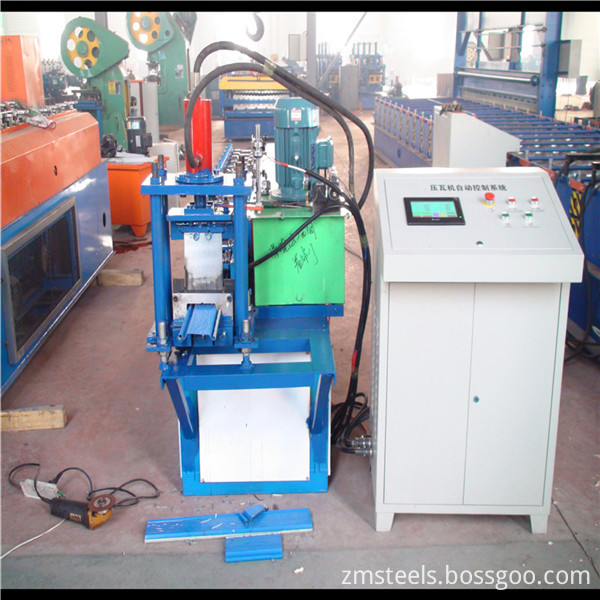

Images

Roll Shutter Door Roll Forming MachineShutter Door Roll Forming Machine

Package and shippment

Roller Door Machine

Contact

card roll forming machine



http://www.zmsteels.com


Packaging & Delivery

  • Packing :plastic packing and nude in the container or according to your requirement
  • Delivery Lead Time : 30
  • Minimum Order : 1

Product Image

  • Roll Shutter Door Roll Forming Machine image
